EXP1 Week 1-4 Progress in 3D model (All drafts)

So, here's the beginning of the sketch model of the selected section, which is the Fine Inspire section.

As you can see, from the front it is quite similar as it is on the section, however for the back view of the building i create a new look which is inspired from the Brand Enchant section.

Week 1:

From these 2 drawings, I began making the model in Sketchup.

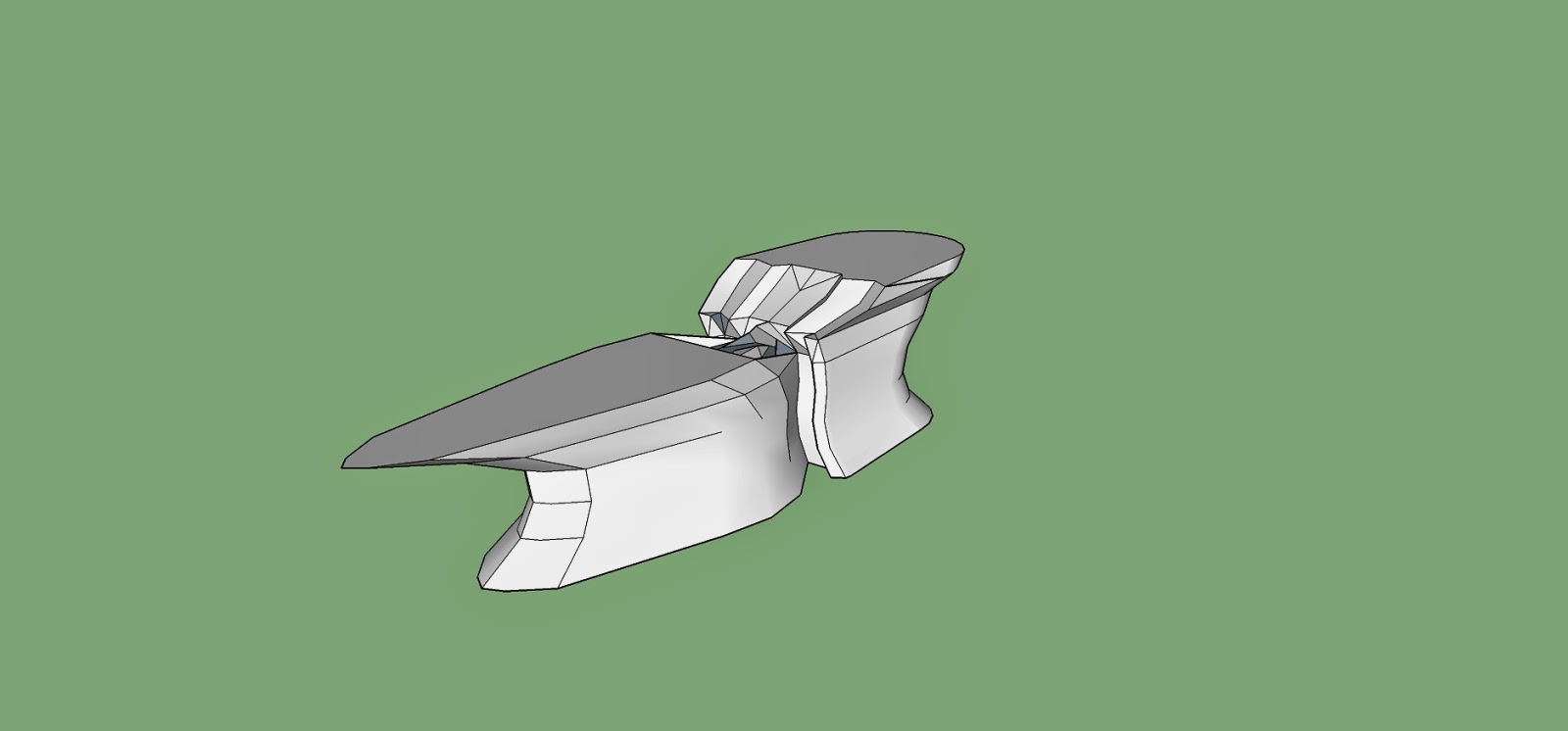

This is the very first trial of the model. It is made before the two drawings above. As you can see, it is more like a half toilet bowl connected to an upside down ironing machine.

Week 2:

After this model, I copied the floor plan of it and create a new one.

As you can see, there is a similar resemblance with the drawings, as I still create a rough draft of it.

I continued to work at home and before week 3 I manage to create this.

 Back view:

Week 3:

By week 3, I did not know what should I do with the tower-like structure in the front of the building. It doesn't look too good either. So, I decided to redesign the building and remove the tower-like structure out of the building.

At this point, I started to create the basement level of the building and stairs. I finished it by week 4.

Week 4:

I finished making the basement as it is seen in the sketch.

After that, I began coloring the building itself. I pick 3 main colors, white grey and dark grey. I use white as the main color for the leaning building structure, dark grey for the building at the back and dark grey for the doors and window frames.

I also download 2d people and furnitures inside, such as tables, chair and motorbikes to enrich the environment inside the building. Overall, this is the final draft looks of the building.
